This is a new project I made which displays any text which I write in through code in ARDUINO editor on a LCD display connected to ARDUINO UNO.

Here I coded in Arduino editor to display text Please visit Arjunjuneja.com on the LCD.

This is a followup Video of my ARDUINO UNO R3 Project which I recently made.

This video explains the steps in detail. (See Video 1 as well).
It basically flashes two christmas lights from one to another.

It uses Arduino UNO R3 with Arduino RELAY module connected to two Christmas Lights.
I wrote the flashing program in Scratch for Arduino editor in my Laptop which is connected to the ARDUINO board by a USB cable.

This is a ARDUINO UNO R3 Project which I recently made.
It basically flashes two christmas lights from one to another.

It uses Arduino UNO R3 with Arduino RELAY module connected to two Christmas Lights.
I wrote the flashing program in Scratch for Arduino editor in my Laptop which is connected to the ARDUINO board by a USB cable.
*** SEE MY VIDEO 2 WHERE I EXPLAIN HOW I MADE THIS ***

I got an ARDUINO UNO board in october 2015.

I can control devices through the arduino board by writing programs on my Laptop which is connected to the Arduino board by a USB cable.

I also got a RELAY module for arduino as well as a LCD display module for arduino.

I will soon post demos of what i have created using Arduino and programming in Scratch for arduino.

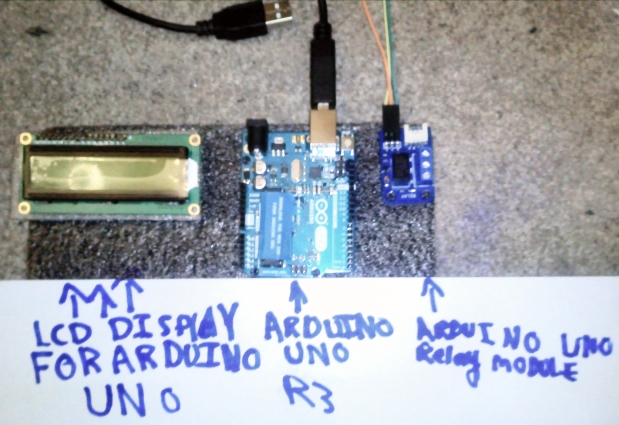

Below is picture of my ARDUINO UNO board, the RELAY and LCD modules.

This is a 555 IC Flasher circuit I made on a breadboard.

Sorry, this video just has me making the circuit on breadboard and not speaking (which I will do in other videos).

The latest circuit I made using the new soldering gun was a digital clock and the one before that was a 555 IC tone generator.

I made the digital clock in my 2015 summer holidays.

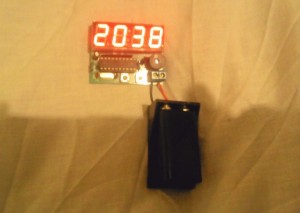

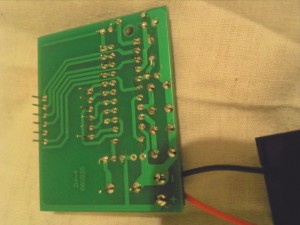

DIGITAL CLOCK-

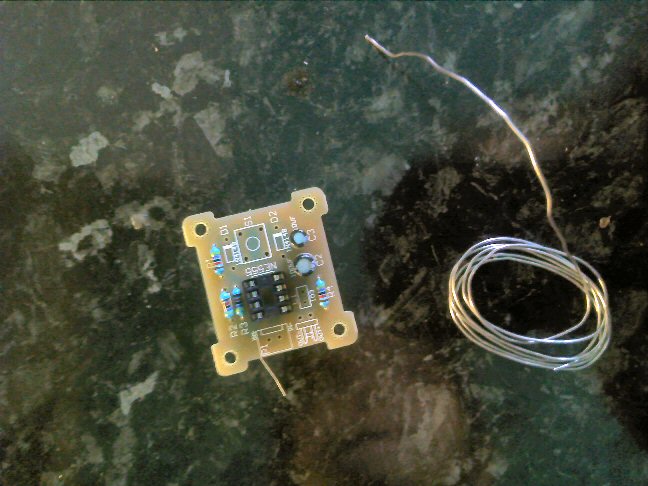

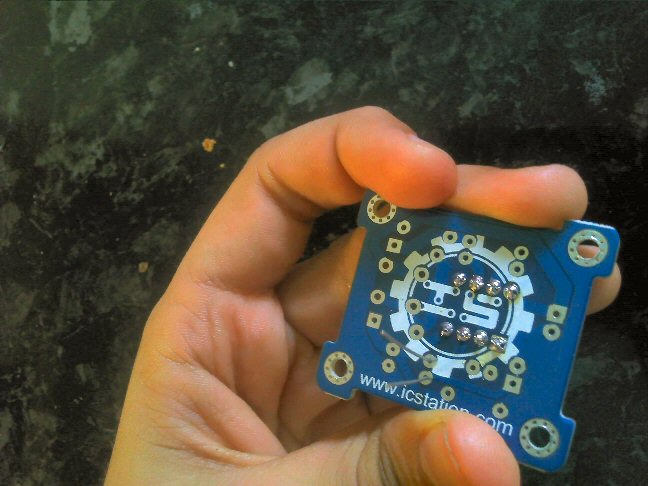

TONE GENERATOR USING 555 IC-

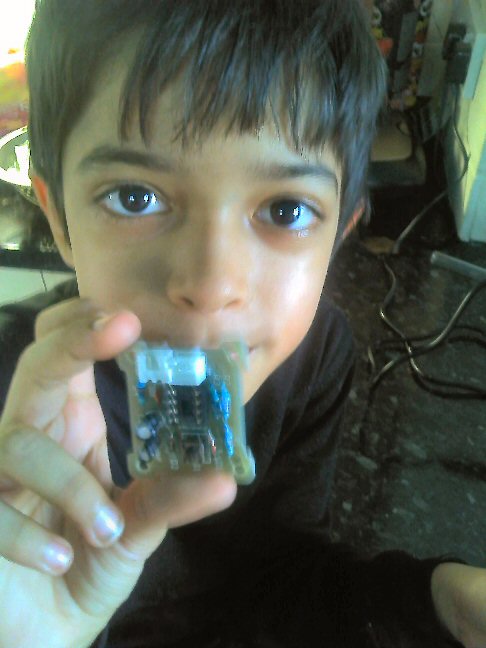

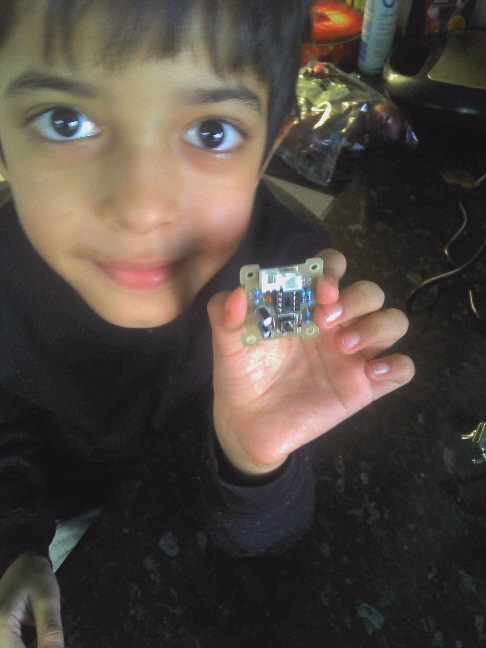

the completed circuit.
